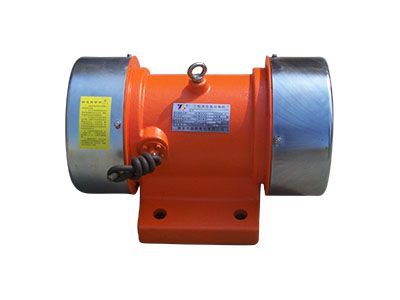

TZD系列振动源三相异步电动机(简称振动电机)是各类振动机械的通用激振源。广泛应用于电力、建材、粮食、煤炭、矿山、冶金、化工、轻工、铸造、铁道、水泥、港口等行业的振动给料机,振动输送机、振动烘干机、振动选矿机、振动落砂机、振动节分机及料仓的振动防堵塞机构等。
TZD振动电机技术参数:
型号 | 激振力(KN) | 功率(kw) | 电流(A) | 安装尺寸(m m ) | |||||||||
E | F | G | H | I | L | M | N | n | φd | ||||
TZD11-2C | 1.5 | 0.15 | 0.5 | 180 | 135 | 20 | 85 | 196 | 354 | 214 | 178 | 4 | 11 |
TZD12-2C | 2.5 | 0.25 | 0.75 | 180 | 150 | 20 | 85 | 196 | 354 | 214 | 178 | 4 | 13 |
TZD12-4C | 2.5 | 0.1 | 0.3 | 180 | 150 | 20 | 85 | 196 | 354 | 214 | 178 | 4 | 13 |
TZD21-2C | 5 | 0.4 | 1.14 | 220 | 176 | 20 | 95 | 218 | 393 | 260 | 206 | 4 | 15 |
TZD21-4C | 5 | 0.2 | 0.6 | 220 | 176 | 20 | 95 | 218 | 417 | 260 | 206 | 4 | 15 |
TZD21-6C | 5 | 0.75 | 2.3 | 220 | 176 | 20 | 95 | 218 | 521 | 260 | 206 | 4 | 15 |
TZD31-2C | 8 | 0.75 | 2.5 | 236 | 179 | 25 | 140 | 276 | 441 | 290 | 225 | 4 | 19 |
TZD31-4C | 8 | 0.4 | 1.5 | 236 | 179 | 25 | 140 | 276 | 464 | 290 | 225 | 4 | 19 |
TZD31-6C | 10 | 0.75 | 2.3 | 236 | 179 | 25 | 140 | 276 | 476 | 290 | 225 | 4 | 19 |
TZD41-2C | 16 | 1.5 | 2.3 | 270 | 224 | 30 | 170 | 350 | 620 | 340 | 300 | 6 | 21 |
TZD41-4C | 16 | 0.75 | 2.1 | 270 | 224 | 30 | 170 | 350 | 616 | 340 | 300 | 6 | 21 |
TZD41-6C | 20 | 1.5 | 3.9 | 270 | 224 | 30 | 170 | 350 | 602 | 340 | 300 | 6 | 21 |
TZD51-4C | 32 | 1.5 | 3.5 | 340 | 230 | 40 | 190 | 400 | 650 | 420 | 310 | 6 | 31 |
TZD51-6C | 30 | 2.2 | 5.5 | 340 | 230 | 40 | 190 | 400 | 650 | 420 | 310 | 6 | 31 |
TZD51-8C | 30 | 2.2 | 6.1 | 340 | 230 | 40 | 190 | 400 | 650 | 420 | 310 | 6 | 31 |
TZD52-6C | 40 | 3 | 6.3 | 340 | 230 | 40 | 190 | 400 | 650 | 420 | 310 | 6 | 31 |
TZD61-4C | 50 | 2.2 | 5 | 390 | 222 | 50 | 225 | 455 | 710 | 480 | 344 | 6 | 37 |
TZD61-6C | 50 | 3.7 | 9.1 | 390 | 222 | 50 | 225 | 455 | 710 | 480 | 344 | 6 | 37 |
TZD61-8C | 50 | 3.7 | 9.1 | 390 | 222 | 50 | 225 | 455 | 748 | 480 | 344 | 6 | 37 |
TZD71-6C | 75 | 5.5 | 15 | 440 | 248 | 50 | 240 | 502 | 770 | 520 | 400 | 6 | 37 |
TZD72-6C | 90 | 5.5 | 15 | 440 | 248 | 50 | 240 | 502 | 770 | 520 | 400 | 6 | 37 |
TZD71-8C | 75 | 5.5 | 11.6 | 440 | 248 | 50 | 240 | 502 | 770 | 520 | 400 | 6 | 37 |
TZD81-6C | 125 | 10 | 25 | 480 | 360 | 65 | 280 | 560 | 1078 | 620 | 530 | 6 | 43 |
TZD81-8C | 125 | 10 | 24.2 | 480 | 360 | 65 | 280 | 560 | 1078 | 620 | 530 | 6 | 43 |
TZD82-6C | 140 | 12 | 28.5 | 480 | 360 | 65 | 280 | 560 | 1100 | 620 | 530 | 6 | 43 |
